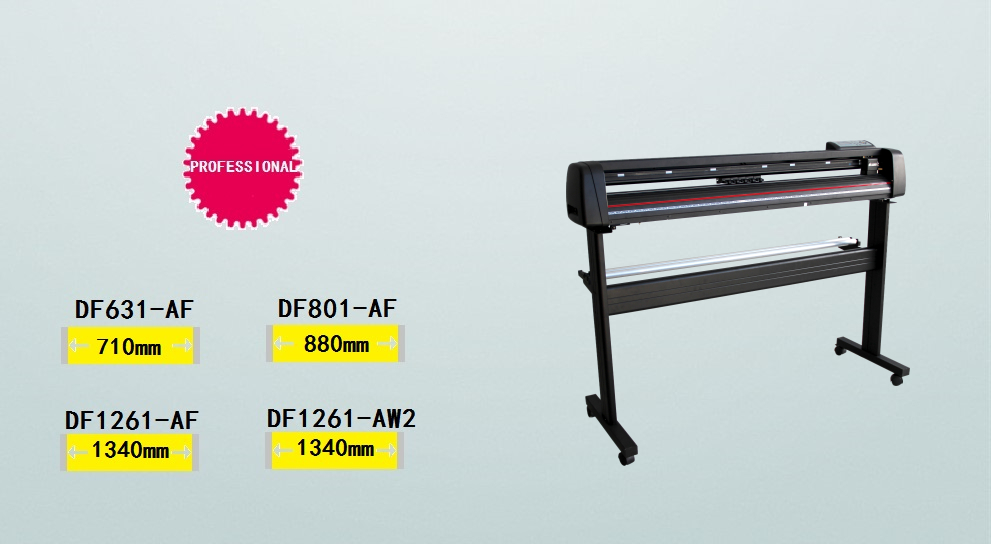

DF Series Cutting Plotter
Technical Specifications:
|
Model |
DF631-AF |
DF801-AF |
DF1261-AF |
DF1261-AW2 |
|
Cutting Size |
600mm/2.07ft |
780mm/2.62ft |
1260mm/4.13ft |
1260mm/4.13ft |
|
Media Size |
710mm/2.33ft |
880mm/2.89ft |
1340mm/4.40ft |
1340mm/4.40ft |
|
Max.Cutting Speed |
1000mm/s |
1000mm/s |
||
|
Cutting Pressure |
500g |
800g |
||
|
LCD Display&Stand |
Yes |
Yes |
Yes |
Yes |
|
Buffer capacity |
1Gb-Recyclable |
1Gb-Recyclable |
||
|
Resolution |
0.025mm/step |
0.025mm/step |
||
|
Origin Adjustable |
Yes |
Yes |
||
|
Repeat ability |
0.02mm |
0.1mm |
||
|
Power |
AC220V(110V)±15%，<100W |
AC220V(110V)±15%，<120W |
||
|
Language Format |
HP-GL,DM-PL |
|||
|
Interface |
USB2.0&Serial&U Disk |
USB2.0&Serial&U Disk&WIFI |
||
|
Drive |
Servo Motor |
|||
|

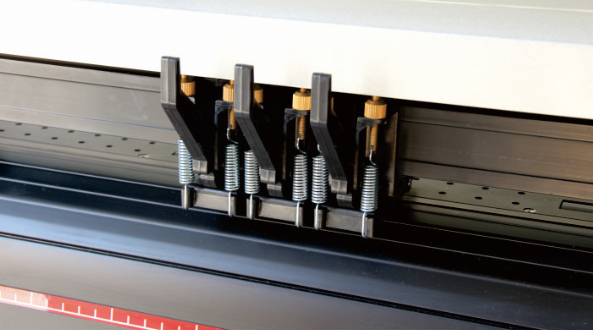

Princh Roller |
3pcs |
5pcs |
9pcs |
|
Specifications are subject to change without prior notice,all rights reserved.
Highlight Features:
1.Standard with real Contour cut function,full-automatic and easy to achieve contour cut without interference from other light sources,high resolution.
2.No need to manually install the USB driver, the system automatic identification, fast, convenient and stable;
3.New adopted ARM processor and new servo drive. system more powerful and stability.
4.It can read and cut the contour cutting file directly from U-disk(flash disk).
5.1Gb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even power failure.
6.New high-speed GD32 remote control system with new servo drive, higher speed, noise-free work.

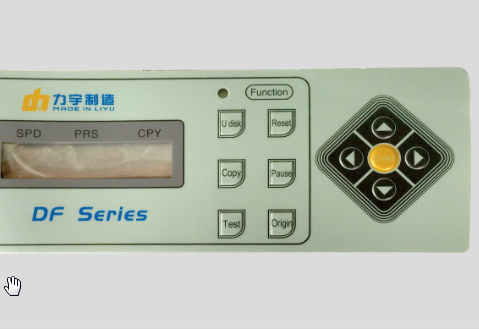

7.Humanized design, digital cutting force and speed adjustable at any time.

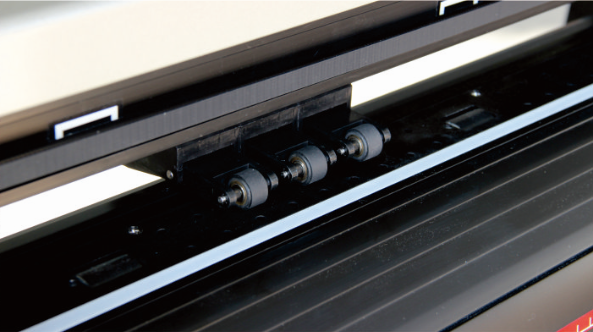

8.High-precision "steel thorn" main roller, higher accuracy.
9.Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.
10.Bulk copy up to 99, saving time and effort.
