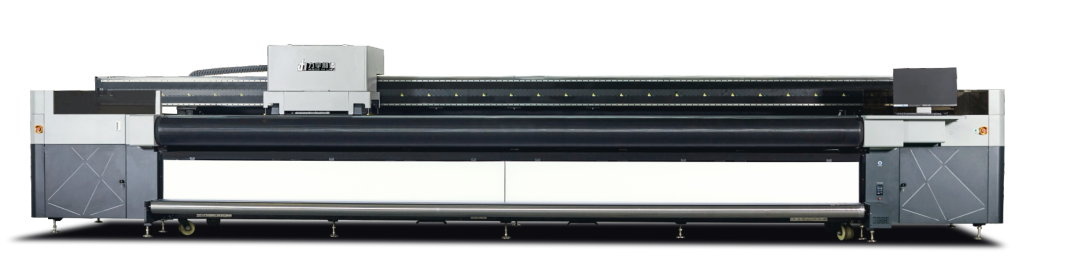

Galaxyseries H6 Series HybridUVPrinter

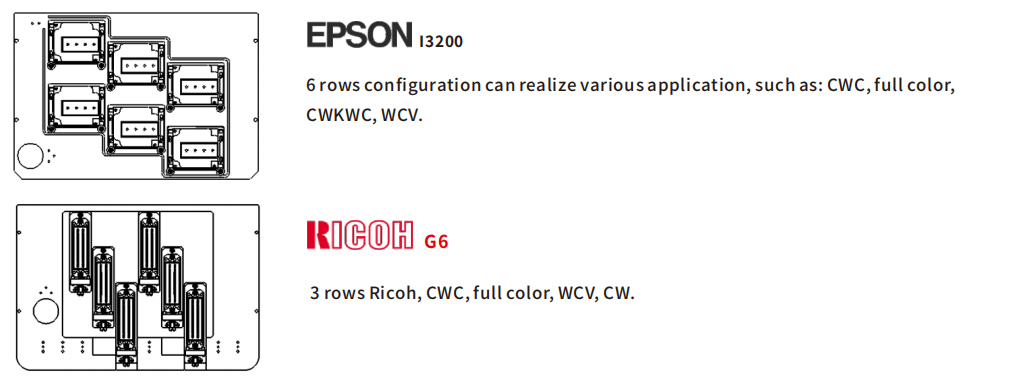

Head arrangement:
Technical Specifications:
|
Model
|
DSJ6800 |
||
|
Print Technology |
Piezo continuous drop-on demand(DOD) |
||
|
Head Model |
KONICA 6988H/1024A |
||
|
Print Head Control |
Software Adjust Head temperature & Voltage |
||
|
Print head Configuration
|
KONICA系列 |
||
|
Maximum Printing Size |
6.80m |
||
|
Print Resolution |
635*2880 dpi |
||
|
Print Speed Up to |
270㎡/h |
||
|
INK Type |
Environmental friendly UV/LED curable ink |
||
|
Color Profile |
K C MY(W可選/optional) / K C MY Lc Lm （W可選/optional） |
||
|

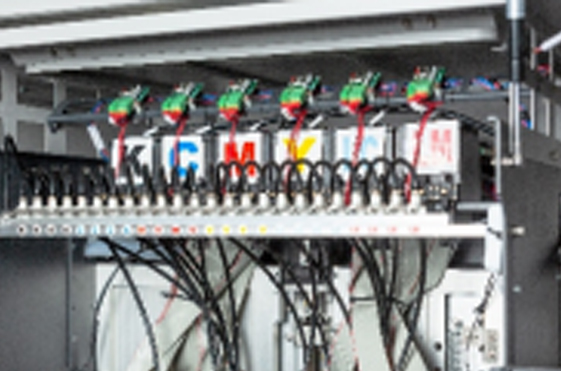

Ink Supply System |
Automatic continuous ink supply with vacuum negative pressure
|
||
|
Dielectric adsorption |
Desktop Vacuum Adsorption,zoning control |
||
|
Drying System |
LED UV lamp Curing |
||
|
Table Pressure |
25kg /㎡ |
||
|
Package Size |
9900*2800*2100
|
||
|
Machine Size |
9710*2530* 1935 |
||
|
Machine Weight |
10Tons |
||
|
Printing Interface |
PCIE System |
||
|
Power Requirement |
Main frame 220V±10% 50HZ 3300W Fan device 2380V±10% 50HZ 8900W UV燈 220V±10% 50HZ 5500W |
||
|
EnvironmentalRequirements |
Temperature 15 ℃ ~ 30 ℃ Relative humidity 40% ~ 80% |
||
|
RIP Software |
Photoprint/Printfactory/Caldera |
||
|
Functional configuration |
independent temperature control for auxiliary ink tank, intelligent pressure negative-pressure ink-supply system, human engineering mechanics design, hand-held control handle, BOSCH mute guide,Pedal assisted feeding, double winding take-up and feeding,LED cold light source solidification. |
Specifications are subject to change without prior notice,all rights reserved.
Highlight Features:
1、6.8m ultra-wide fagship model,standard configuration with 6 rows,optional9 rows,to meet various high-speed printingneeds.
2、The frame is made of a welded steel structure, equipped with a heavy-duty linear motor with a metalgrating, dual silent guiderails, and a large diameter drive roller. The total weightofthe machine is 10tons,ens uring the overallstructuralstrength and longterm stability of the printer.
3、With the unique wireless handle function, combined with front and rear pedals, and thoughtful human design, large-format printing is easily controlled.

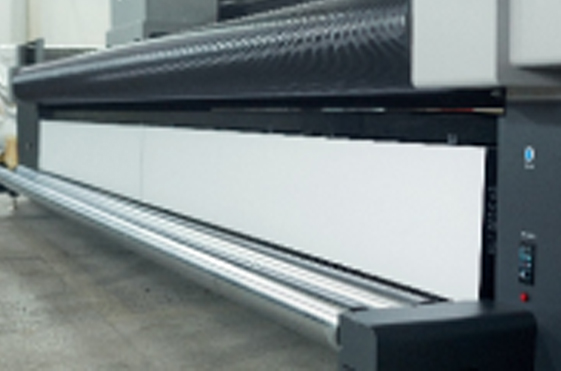

4、Fully auto matic tape guiding and correction system, no deformation and no deviation in long-form printing.

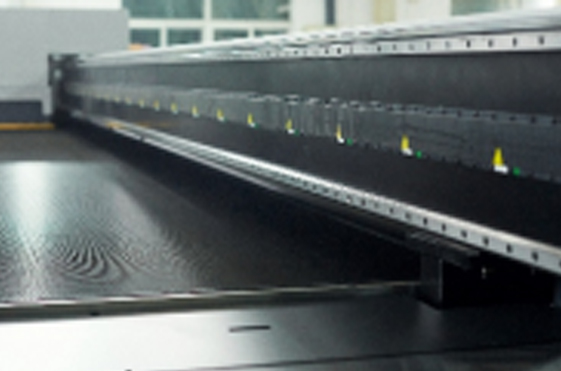

5、Independent8-zone variable frequency adsorption system, adaptsto more materials and meets various application scenarios.
