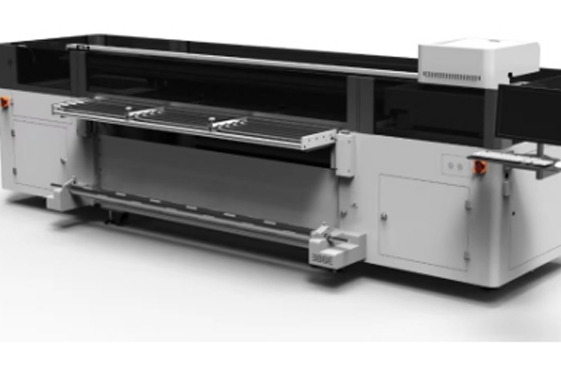

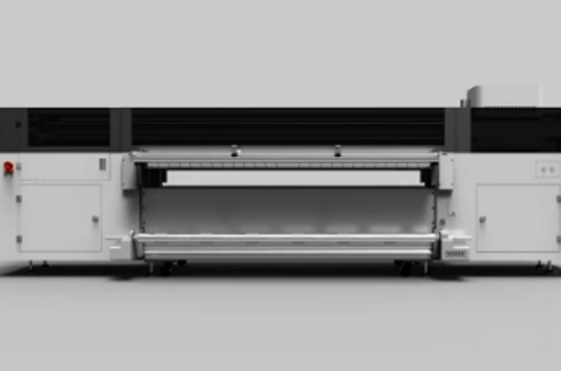

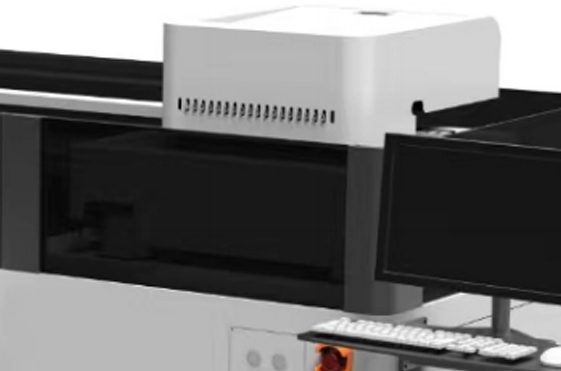

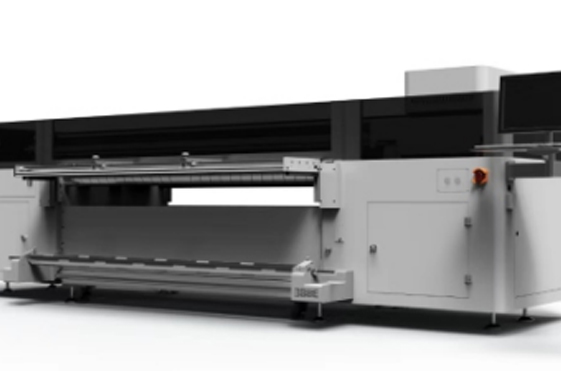

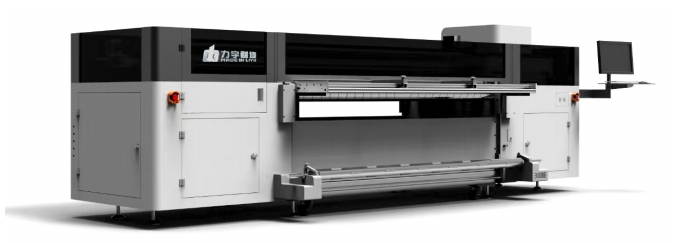

Starlink series H2 UVhybird printer
Technical Specifications:
| model |
DQS2000 |
||
|
Print Tech |
Piezo continuous drop-on demand(DOD) |
||
|
Head Model |
EPSON i3200/ RICOH G6 |
||
|
Printhead Quantity |
Max 9·G6/6·i3200
|
||
|
Print width |
2.1m |
||
|
Print Resolution |
635x2400;635*1800;635*2400 |
||
|
Print Speed Up to |
45㎡/h / 六排i3200 90㎡/h
|
||
|
INK Type |
Environmental friendly UV ink |
||
|
Color profile |
C;/CWC;/CW;/WC;/W/C/V(KCMY、w可選）/KCMY Lc Lm(w可選） |
||
|
Ink supply system |
Main ink supply tank and subtank |
||
|
Media type
|
Soft roll media(Light box cloth, black and white cloth, instant post, bodyperspectivesticker.leather,canvas,floor mat,table mat,etc),Light plate |
||
|
Take-up and feeding system |
Automatic take-up and feedingsystem, standard configuration with air shaft feeding system |
||
|
Drying System |
UV-LED curing |
||
|
Table pressure-bearing |
50kg/㎡
|
||
|
Package size |
4520mm *1160mm *1650mm
|
||
|
Machine Size
|
4394mm *1675mm *1430mm
|
||
|
Machine Weight
|
1300kg
|
||
|
Printing interface
|
USB
|
||
|
Power Requirement |
220V±10% / 50HZ
|
||
|
Environmental requirements
|
Temperature 15 0C ~ 30 0C
Relative humidity 40% ~ 80%
|
Highlight Features:
1,The new Xline DOs series UV hybird printer stands out with its stylish and agile design, particularly adept at smal-format materialprinting requirements, providing an ideal solution for various applications.
2,Equipped with multiple high-precision multi-level grayscale printheads from Epson and Ricoh, it meets various applicationrequirements, in cluding color/white/color printing, color/white/black/white/color printing, and white/color/varnish printing.
3,upgraded hardware configuration, equipped with large-size steel beams + linear motors, widened printing platform, allowinglong-term high-speed stable output!
4,Optional front and rear expansion platforms can meet the continuous printing requirements of light-duty plates.
