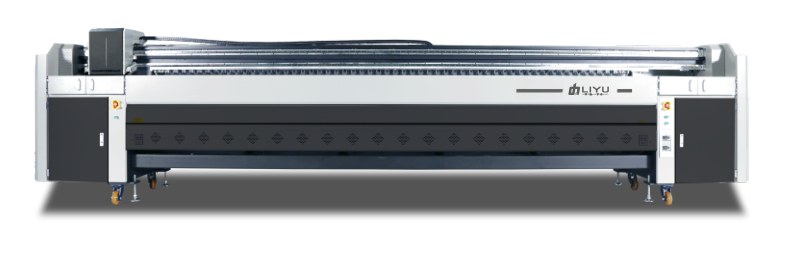

FIGHTER JET PN53
機器型號/Model
PN 5308-KV / PN 5308-KY
噴墨技術/Print Technology
工業級壓電式噴墨 Industrial piezoelectric inkjet
墨水類型/Ink Types
Solvent Ink/Eco-Solvent Ink
RIP軟 件/RIP Software
Photoprint,Maintop/Caldera
顏色配置/Colour Configuration
4Color (C/M/Y/K) (Lc Lw option)
操作系統/Operating System
Win7/Win10 64bits
圖像格式/Image Format
TIFF/JPEG/EPS/PDF
噴頭高度/Printhead Height
可調高度2-8mm Above Media Adjustable 2-8mm
介質類型/Media Type
車身貼、貼片、布旗布、單透貼、燈箱布、卷筒或單張介質
介質規格/Media Standard
最大寬度 Maximum Media Width 5300mm (17.39ft)
打印寬度/Printing Width
最大打印寬幅 5250mm Maximum Print Width 5250mm (17.22ft)
介質傳輸/Media Transmit
工業級收送布系統 Media Feeding System (Max Media Weight 120kg)
加熱干燥 /Heating & Drying System
配備（紅外+風扇 ) Equipped（ Infrared Ray+fan Drying)
數據接口/ Data Interface
Hi-Speed USB 3.0
溫 度 /Temperature
15-28℃( 59 to 82.4°F)
濕 度/Humidity
35 to 80% RH
最大功率/Maximum Power
＞20A; 8KW
輸入電源/Imput power
AC220V/110V(±5%),50HZ/60HZ
機器尺寸重量/Machine Dimension/Weight
L7250 X W1250 X H1650mm / Net Weight 1200Kgs
包裝尺寸重量/Package Dimension/Weight
L7200 X W1290 X H1740mm / Gross Weight 1350Kgs
Vinyl,Fiex,Polyester,Back-lit Film,Window Film,etc.
功能特點/ Highlight Features:
1、8 Konica Km512i/1024i heads;
2、High speed, printing speed up to?270m2/H；
3、Extra-large width format, reduce splicing, save labor;

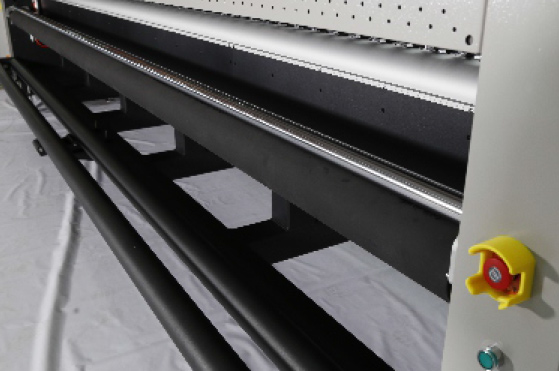

4、Front paper guide rod, make sure material pass smoother;
5、Adjustable angle high power dryer, fast and uniform heating;
6、Industrial negative pressure system, continue long time printing;
