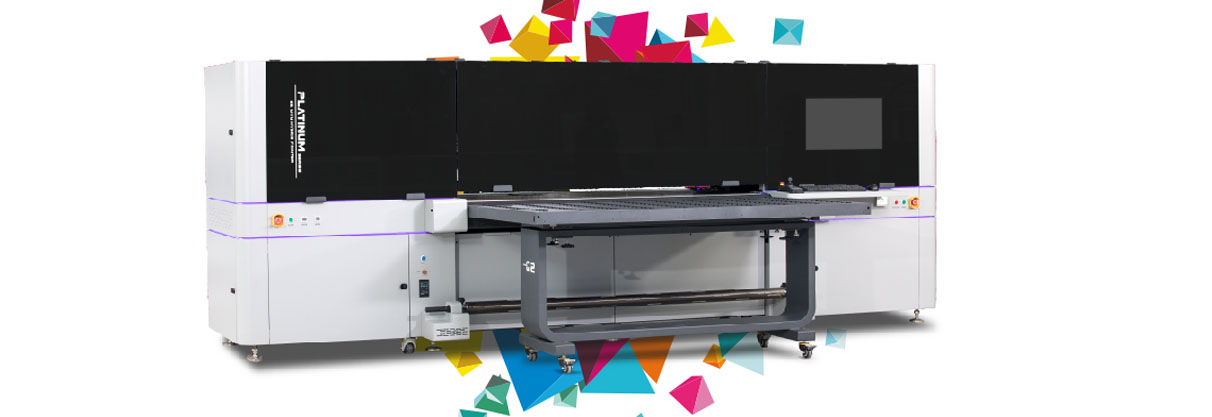

Universe Series H3 &H2 Hybrid UVPrinter
技術參數/Technical Specifications
|
機器型號/Model
|
DS3200 / DS2000 |
||
|
打印技術/Print Technology |
Piezo continuous drop-on demand(DOD) |
||
|
噴頭類型/Head Model |
RICOH GEN5 / RICOH GEN6 / KM1024I / KM1024A |
||
|
噴頭控制/Print Head Control |
軟件調整噴頭溫度，噴頭電壓
Software Adjust Head temperature & Voltage
|
||
|
噴頭配置/Print head Configuration
|
KCMYx2/KCMYx3/KCMYLcLmx2/KCMY//KCMYLcLm（白色選配/ white as optional)）
|
||
|
打印幅寬/Maximum Printing Size |
3.30m / 2.05m
|
||
|
打印分辨率/Print Resolution |
2880 dpi |
||
|
最快打印速度/Print Speed Up to |
150㎡/h
|
||
|
墨水類型/INK Type |
UV型墨水 / Environmental friendly UV/LED curable ink
|
||
|
顏色配置/Color Profile |
K C M Y Lc Lm (可選/optional) / K C M Y Lc Lm W V（可選/optional）
|
||
|
刮墨裝置/Auto.cleaning system |
有/Available
|
||
|
供墨方式/Ink Supply System |
采?真空負壓?動連續供墨 |
||
|
烘干裝置/Drying System |
LED UV燈固化 / LED UV lamp Curing
|
||
|
包裝尺寸/Package Size |
6340x1938x2168/5110x1790x2168（主機/Main frame）
3982x1750x1204/2400x1180x1739（輔助平臺/SupportingTable） |
||
|
機器尺寸/Machine Size |
6020x2220x1775/4760x1570x1780（主機/Main frame） 6020x3732x1775/4760x3732x1780（輔助平臺/SupportingTable） |
||
|
機器重量/Machine Weight |
3噸(主機)/1噸（擴展平臺2個和收放布系統2個） 3Tons(Main frame)/ 1Ton (TWO extension platforms and Two Units of Media feeding & Take-up system) |
||
|
打印接口/Printing Interface |
PCIE系統 / PCIE System
|
||
|
電源要求/Power Requirement |
主機/Main frame 220V±10% 50HZ 3300W ?機/UV燈 220V±10% 50HZ 5000W
|
||
|
環境要求/Environmental Requirements |
溫度/Temperature 15 ℃ ~ 30 ℃ 相對濕度/Relative humidity 40% ~ 80%
|
||
|
RIP軟件/RIP Software |
Printfactory/Caldera
|
||
|
功能配置/Functional configuration |
智能恒壓吸附（選配）、全自動導帶糾偏（選配）、副墨罐獨立溫控、 折疊式擴展平臺（選裝），智能壓差式負壓供墨系統，人體工程力學 設計，THK靜音導軌，直線電機（選配），LED冷光源固化，獨立單 雙卷收放布系統（選配），防撞繼打功能，供墨液位缺墨，廢液滿報 警提示，缺料暫停打印，打印前報警，自動介質測高。
Intelligent constant pressure adsorption (optional), full-auto guide
belt guiding (optional), independent temperature control for auxiliary ink tank, folding extension platform (optional), intelligent pressure negative-pressure ink-supply system, human engineering mechanics design, THK mute guide, linear motor (optional), LED cold light source solidification, independent single and double winding take-up and feeding system (optional), anti-collision function, alarm tips when the ink supply level is short of ink and the waste liquid is full, print stop when it is short of ink, alarm before printing, and automatic media altimetry. |
以上數據如有更改，恕不另行通知，解釋權歸安徽力宇公司所有。
功能特點/Highlight Features:
1、LIYU Platinum Series UV guiding belt printer can stably print out a series of soft and hard materials such as soft film, coated banner, carriage sticker, high permeability film, reflective film, 3P cloth, KT board, paperboard, and polyvinyl alcohol. Besides, it has the remarkable characteristics of zero waste of printing materials and no error in long-size printing.
2、UV guiding belt printer can print accurately without calculating measurement compensation, and the printed materials are available immediately after printing; guiding cloth is not a must during printing, which can save materials and reduce costs; the printing media can be both hard and soft, which has a good versatility.

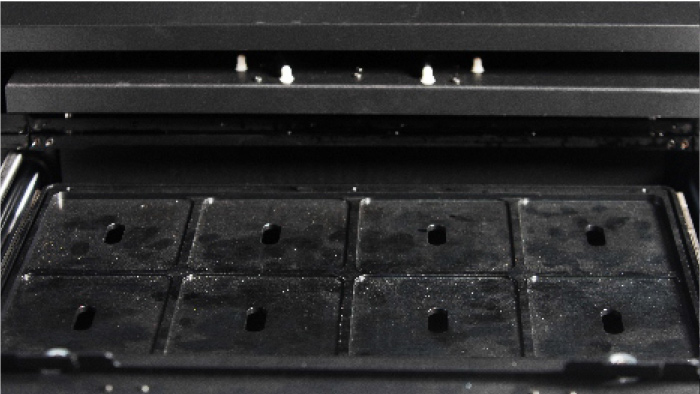

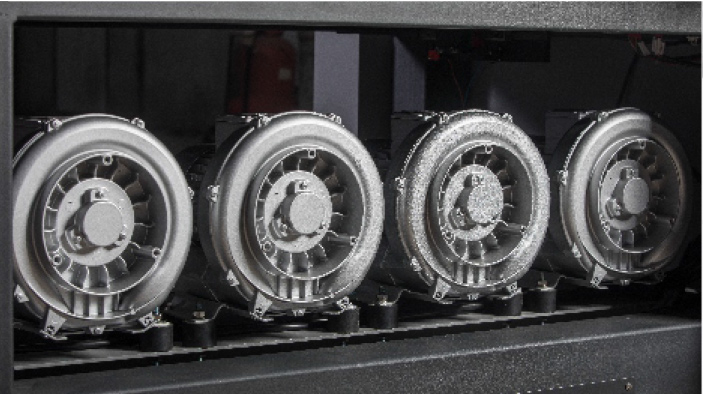

3、The printer is equipped with four-zone intelligent frequency conversion adsorption function, which can adapt to various soft and hard materials, and print more easily. In addition, soft materials are wrinkle-free, and hard materials are warp-free when printing.

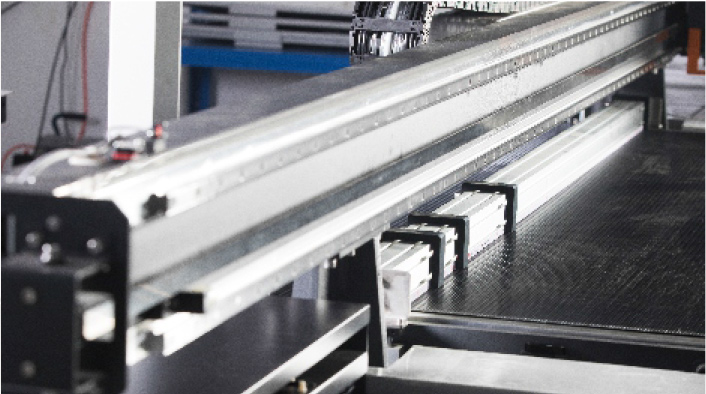

4、The full-auto intelligent guiding belt guiding system allows printing long-format materials without deformation and deviation.

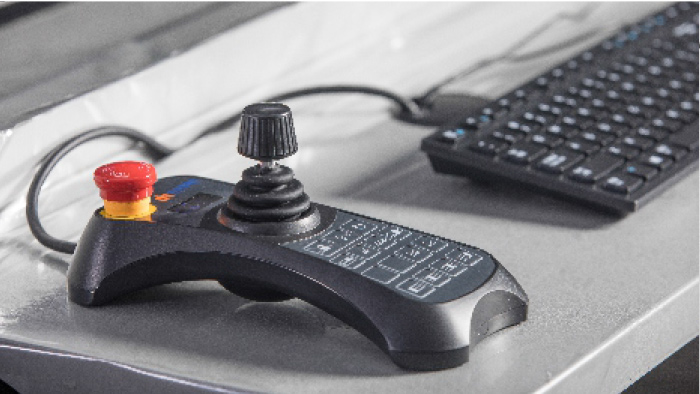

5、The original handle control with humanized design from the user's point of view can give an alarm before printing, select front and rear double-screen control, independent three-roll take-up and feeding system, etc. to provide better experience.
6、The automatic ink scraping system and cleaning equipment for print head can easily maintaining the print head without staining by the ink.

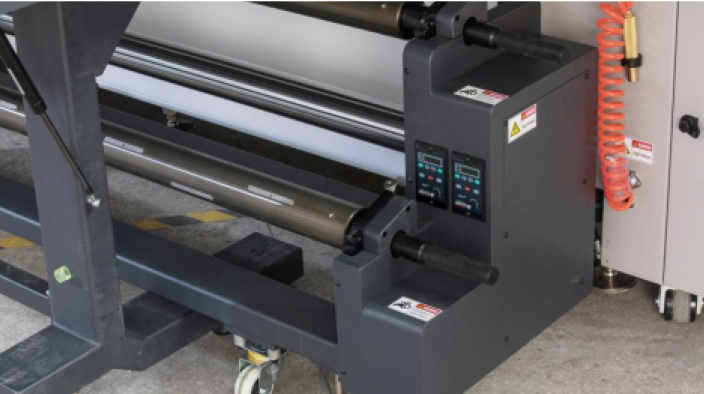

7、The optional independent front and rear take-up and feeding system can take-up and feed one roll of 3.2m material and two rolls of 1.6 m material at the same time. It can easily take-up and feed materials of various formats.

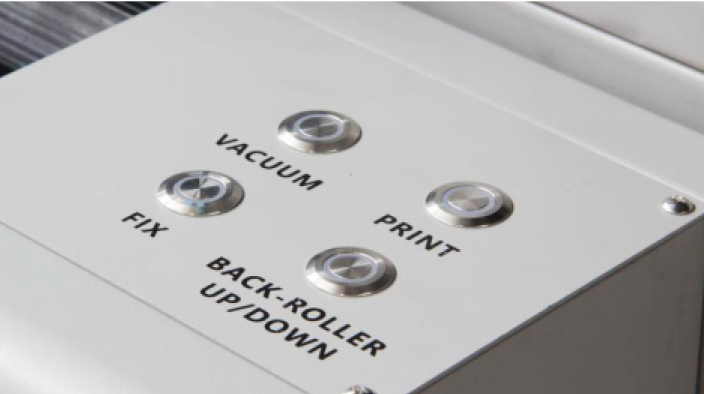

8、The optional front and rear keys and plate positioning control system can quickly position printing plates and print continuously.
