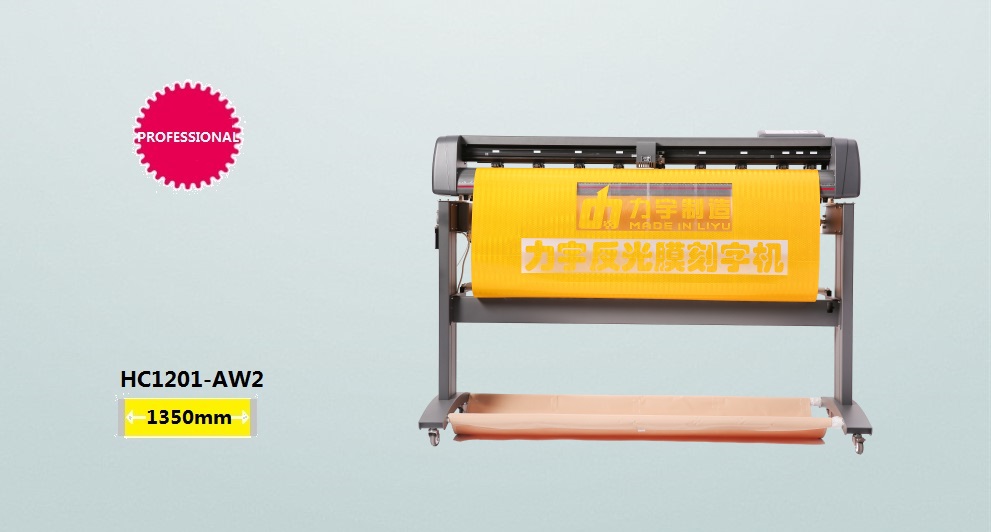

HC1201-AW2 Series Cutting Plotter
Technical parameter:
|
Model |
HC1201-AW2 |
|
Cutting Size |
1240mm |
|
Media Size |
1350mm |
|
Max.Cutting Speed |
900mm/s |
|
Cutting Pressure |
800g |
|
Resolution |
YES |
|
Memory |
1Gb |
|
Repeat ability |
0.125mm |
|
Interface |
USB2.0&Serial&U Disk |
|
Type of Command |
HP-GL,DM-PL |
|
Auto contour cut |
Standard |
|
Half cut |
Standard |
|
Auto feeding media |
Standard |
|
Motor |
Servo motor,Subdivided constant current drive |
|
Pinch roller |
9sets |
|
Power |
AC110V~220V,50/60Hz |
|
Environment Temperature |
0~35℃ |
|
Environment humidity |
5%~95%Non-condensing water |
The above data are subject to change without prior notice, the interpretation of the power of the company owned by Anhui.
Highlight Features:
1.Super high cutting force, delicate speed control, diamond grade reflective film cutting.
2.Large capacity, offline cutting is available.
3.It can read and cut the contour cutting file directly from U-disk(flash disk).
4.Auto contour cut function:contour cutting precision is high, the stability of the optical eye is good, not easy to be affected by light from outside.
5.Auto feeding media system:fast response on detect media, high stability.
